DistributionValve

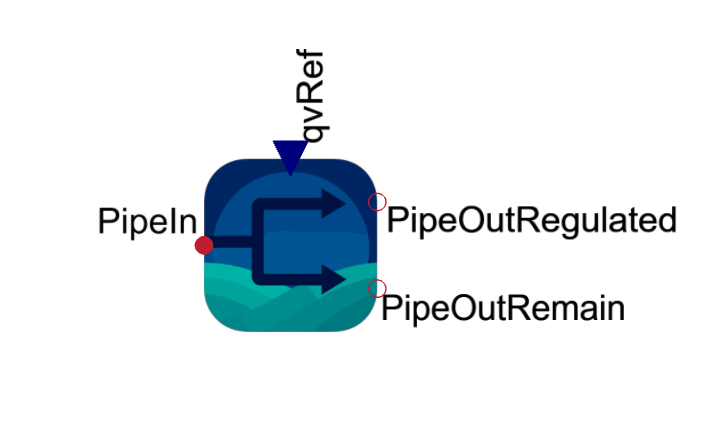

Symbol |  |
|---|
Use
This valve can be used to divide a volume flow of an input pipe between two output pipes dependent on a controlled reference value.
Parameters and Connectors
In this component, the reference volume flow rate defined by ▶qvRef flows through the controlled outlet pipe (▶PipeOutRegulated). The remaining volume flow rate flows through the secondary outlet pipe (▶PipeOutRemain). Note that if the inlet pipe (▶PipeIn) volume flow rate is less than the reference volume flow rate, the entire inlet volume flow rate flows through the controlled pipe.
