GridInverter

Symbol


Use

The GridInverter converts electrical energy between a DC component and a AC component. In the GridInverter are the dc/dc converter and the b6 converter combined.

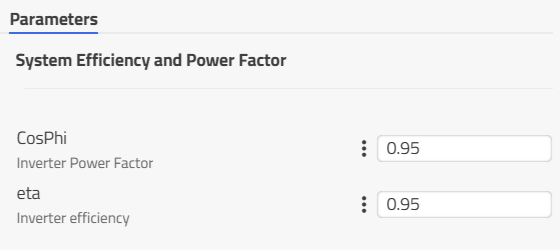

Parameters and Connectors


To perform the conversion, the dc component must be assigned to the ▶DCGrid connectors and the ac component to the ▶Grid connector. The parameters power factor CosPhis and inverter efficiency eta determine the losses of the GridInverter. Note that the maximum DC voltage is not directly dependent on the AC RMS-voltage due to the internal dc/dc converter.
