MergingValve

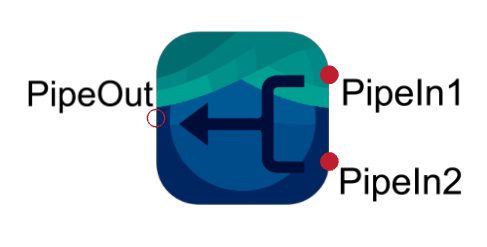

Symbol


Use

This valve component merges the volume flow of two pipes to a single flow in one output pipe.

Parameters and Connectors

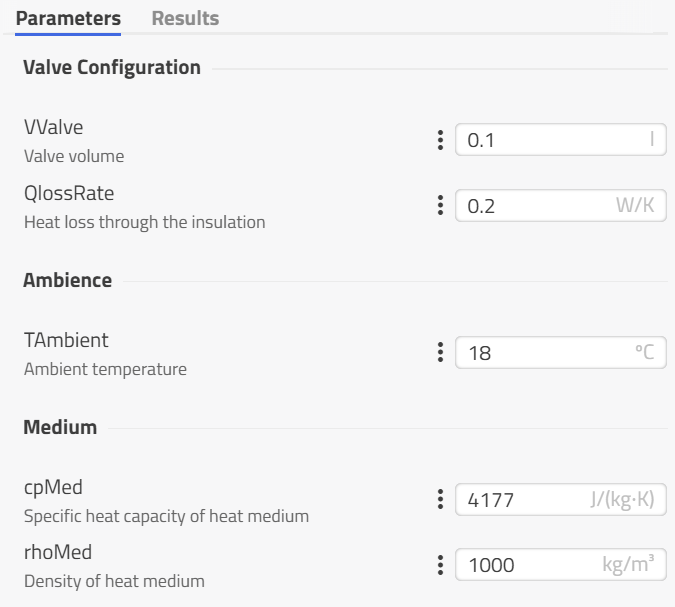

This component calculates the resulting output temperature at ▶PipeOut depending on the share of both input volume flows (▶PipeIn1, ▶PipeIn2). In addition, the valve itself also influences the output temperature through inertia and heat loss. This can be described in terms of its volume (VValve), the properties of the medium (cpMed, rhoMed) and heat losses (QlossRate, TAmbient).
