PhotovoltaicPowerPlant

Use

The photovoltaic power plant is a simplified combination of photovoltaic and inverter model (converts the generated electricity into the desired voltage level). Power generation and power conversion are thus simulated in one model.

Parameters and Connectors

This model combines a PV system with the converter. As with the PV model, the ▶Environment and the connection for an AC grid (▶Grid) are also required here.

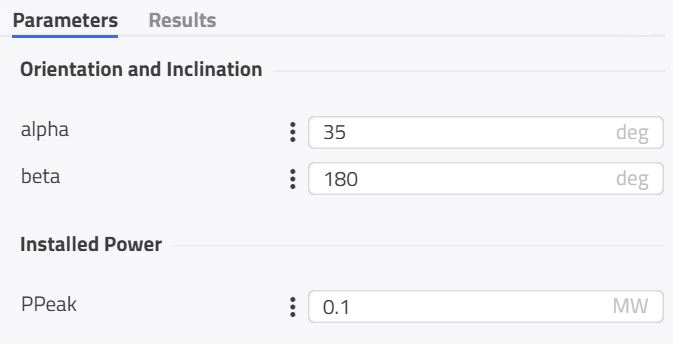

The parameter dialogue is greatly reduced here and only contains the orientation (alpha and beta), and the peak power (PPeak) of the overall system.

Model Background

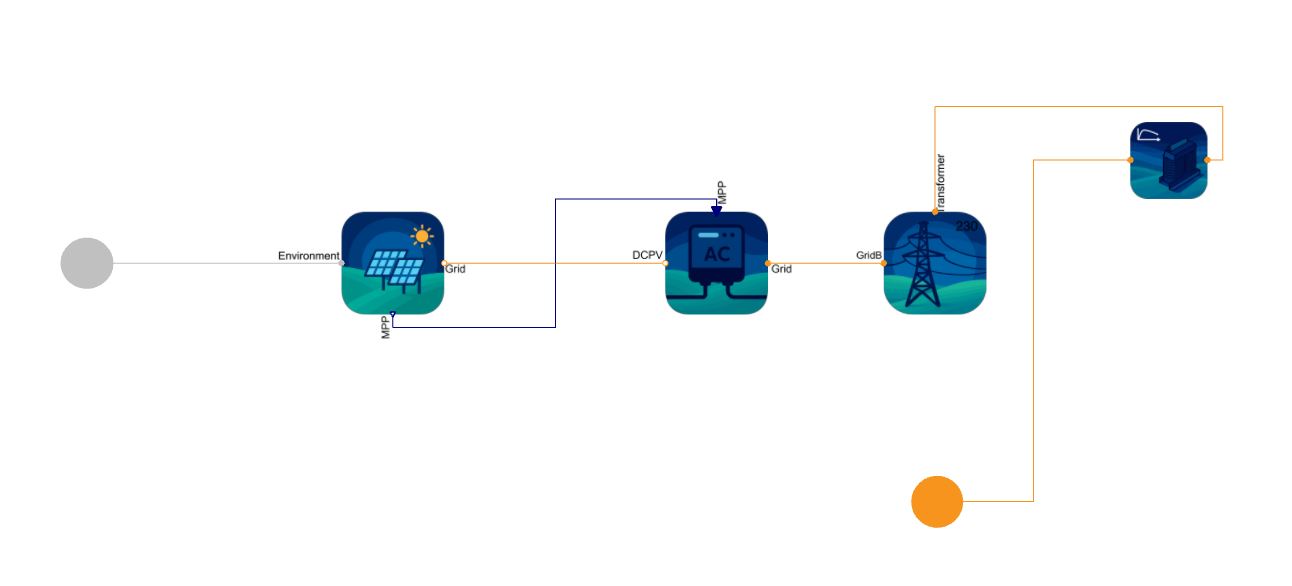

The internal structure of the model is shown in the following illustration.
