PowerOutput

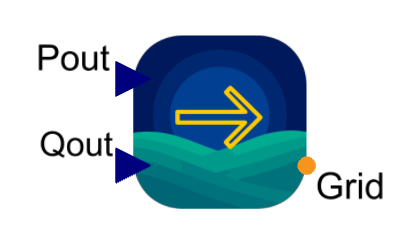

Symbol |  |
|---|
Use
The power output component imports external power characteristics (effective and reactive power) into an electrical energy system model. That way, power and energy demand of special electrical components, like additional consumers in an electric grid, can easily be added to total electrical power consumption or production. Therefore, this model ca be used to implement components from other libraries to GreenCity.
Parameters and Connectors
The effective power output ▶Pout[n] and the reactive power output ▶Qout[n] must be specified for each phase. If the current has no phase shift, then ▶Qout[n] can be given a static zero value.
