DCSwitch

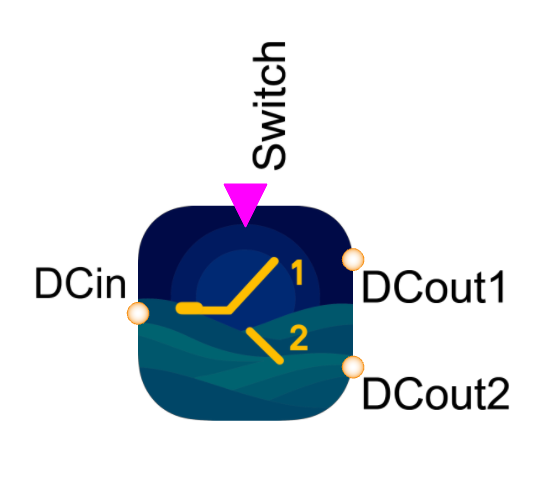

Symbol


Use

The DCSwitch switches between two DC connectors and is used to switch dependent on model states between components.

Parameters and Connectors


If connector ▶Switch is true the dc connector ▶DCOut1 will be connected to ▶DCin and ▶DCOut2 remains disconnected. If false, ▶DCOut2 is connected to ▶DCin and ▶DCOut1 is disconnected.
